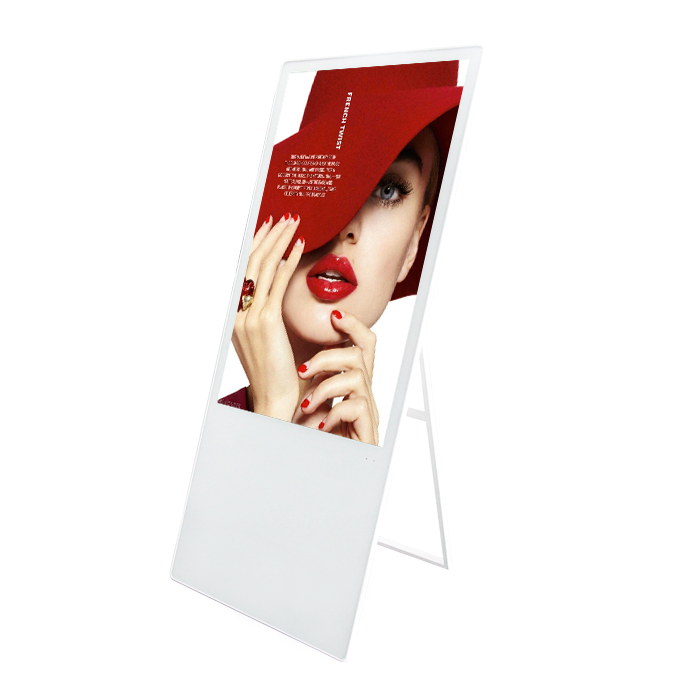

PI2003

 Portable digital signage

 Exhibition digital display

 32",43" optional

 Support single machine display and network based display











Costom made function supported.



Key Function

1. Upgrade contents of the memory card (or Built-in memory) by simply inserting an USB flash drive

2. Timer function: the player turns on/off at the same time everyday according to your setting

3. Function keys on the player can be disabled or enabled


Main Function

1. Play mp4 advertising video, mp3 music and digital photos; Built-in 43 inch TFT LCD screen, with tempered glass protection; easy-to-install on supermarket shelves, tabletop, showcase and lift, etc.; Plastic casing

2. Play from:
--Compact Flash card (CF card)
--USB flash drive
--Built-in memory

3. Upgrade contents of the memory card (or built-in memory) by simply inserting an USB flash drive, no need to take out of the memory card

4. Timer function: the player powers on / off automatically everyday at the time pre-set; It can also automatically play and non-stop replay within the pre-set time frame

5. No DVD style mechanical movement, hence more durable and suitable for long-hour advertising playing

6. 7 function keys on the players, they can be turned on/off

7. Theft-protection device effectively prevent the player and CF card from being stolen in public place

8. Audio output: 2 built-in high quality stereo speakers

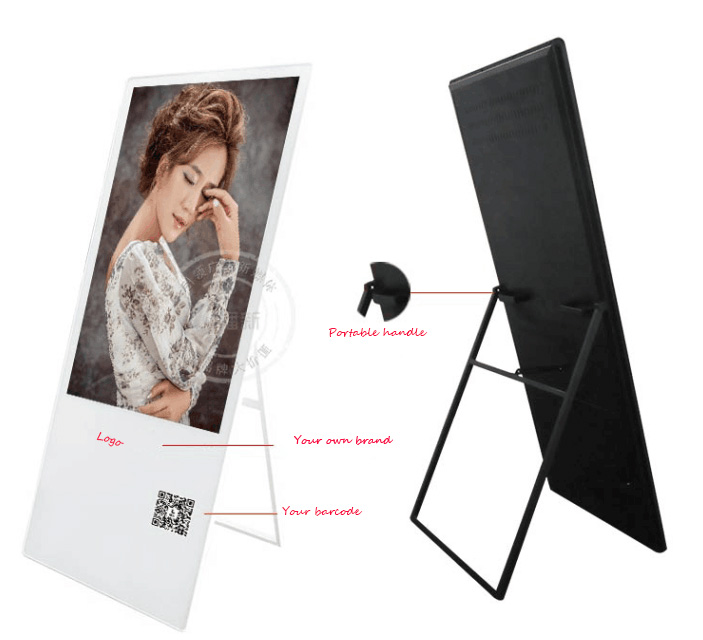

9. With professional easy-to-use stand set; hang on wall or stand on table


Technical Specifications

1. TFT LCD screen:
Size: 43  inch
Resolution: 1920*1080
Brightness: 450cd/m2
View angle: left / right 80°, up /down 85°
Contrast: 1000 : 1

2. Compatible file formats:
Picture formats: BMP/JPG/GIF
Audio formats: MP3/WMA
Video formats: MPEG1(VCD), MPEG2(DVD), MPEG4

3. Play from:
Memory flash: CF card
Built-in Flash memory: (optional)
USB drive: high speed USB 2.0 (Host & OTG)

4. Output:
Built-in loudspeaker power: 2 x 2W

5. Others:
Casing material: Aluminium
Installation: foldable bracket
Power supply: 110-220V, 48W
Dimension(mm): 1700 (H) X 600(W) X 37(D)
net weight:app. 35kg
Working temperature: 0℃ - 40℃
Working humidity: 20% - 80%
Storage temperature: -20℃-60℃

Storage humidity: 10%-95%
